No Ducts No Problem: The Ultimate Guide to Ductless Heating and Cooling

Ductless Mini Split Systems Explained: What Every Homeowner Should Know

Ductless mini split systems explained simply: they are heating and cooling systems made up of two main parts — an outdoor compressor unit and one or more indoor air handlers — connected by refrigerant lines through a small hole in the wall. No ductwork required.

Here is a quick overview of what makes them different:

• What they are: Compact, all-electric HVAC systems that heat and cool individual rooms or zones
• How they work: They move heat between indoors and outdoors using refrigerant — absorbing indoor heat to cool, or pulling outdoor heat inside to warm
• Main benefit: No ducts means no duct energy loss, which can account for more than 30% of energy waste in traditional systems
• Best for: Older homes, room additions, garages, sunrooms, or any space without existing ductwork
• Efficiency: Roughly 20–30% more efficient than ducted systems
• Lifespan: 15–20 years with proper maintenance

If you have ever had a room in your home that just never felt right — always too hot in summer, always too cold in winter — you already understand the core problem that ductless technology solves. Traditional central air systems treat your entire home as one zone, pushing conditioned air through ducts that can leak, lose efficiency, and still leave some rooms uncomfortable. For homeowners in the Triangle area, where summers are humid and winters can dip well below freezing, that inconsistency is not just annoying — it drives up energy bills and puts unnecessary strain on your system.

Ductless mini split systems offer a smarter alternative. Whether you are retrofitting an older home, finishing a bonus room, or simply trying to get better control over your comfort, understanding how these systems work is the first step toward making a confident decision.

Ductless Mini Split Systems Explained: How They Work

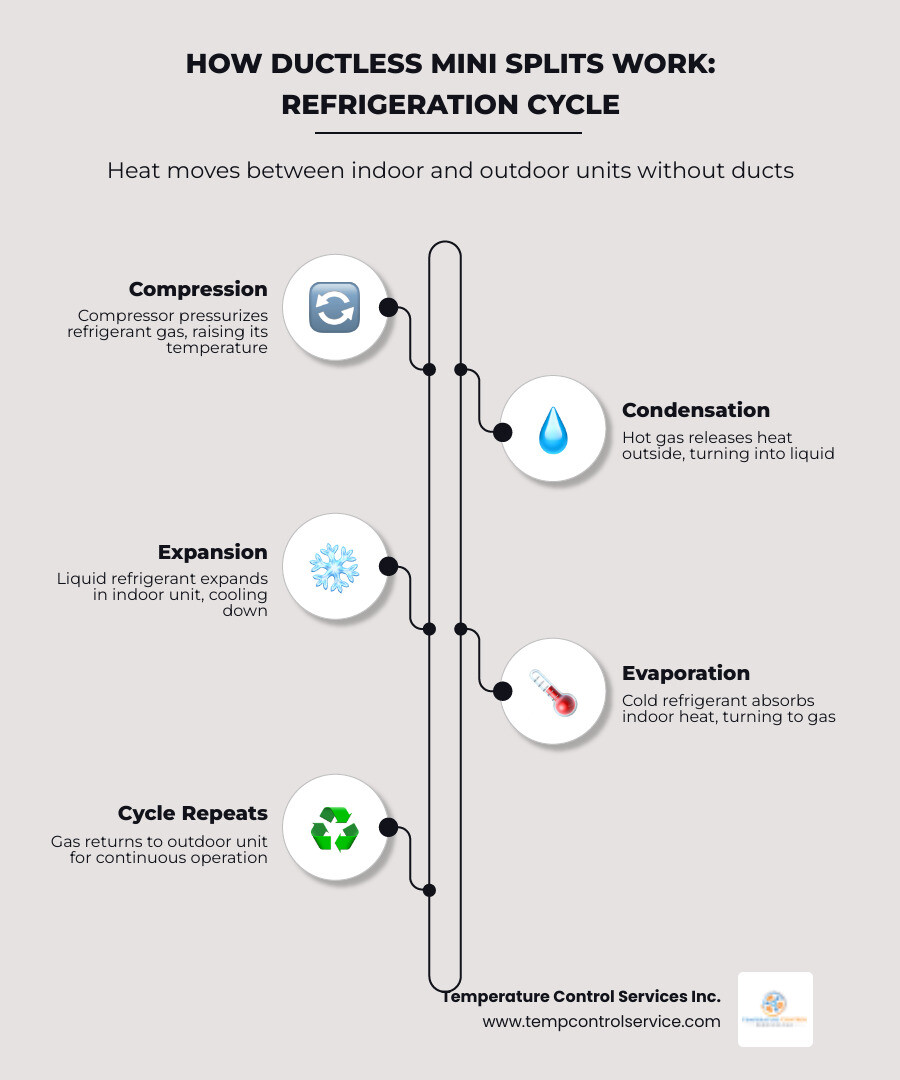

At its heart, a ductless system operates on the same basic laws of physics as your kitchen refrigerator. It doesn't actually "create" cold air; instead, it moves heat from one place to another using the refrigeration cycle. This process involves four main stages: compression, condensation, expansion, and evaporation.

The magic happens through a substance called refrigerant, which flows through copper tubing between the indoor and outdoor components. In the summer, the indoor unit absorbs the heat from your room air and carries it outside to be released. In the winter, the process reverses, pulling heat from the outdoor air (yes, even when it’s cold!) and bringing it inside.

One of the most significant technological leaps in these systems is inverter technology. Unlike traditional central AC units that are either "all on" or "all off"—which is about as efficient as driving your car by flooring the gas and then slamming on the brakes—mini splits use variable-speed compressors. These compressors function like cruise control, automatically adjusting their speed to maintain a precise temperature. This prevents the energy spikes associated with frequent cycling and keeps your home at a consistent, comfortable level. For a deeper dive into these mechanics, check out our Ductless HVAC Systems a Guide.

The Core Components of a Mini Split

To understand ductless mini split systems explained fully, we need to look at the hardware. A standard setup consists of:

1. The Outdoor Condenser: This is the "muscle" of the system. It houses the compressor and a large fan that dissipates heat. It sits quietly outside your home, often on a small plastic or concrete pad.

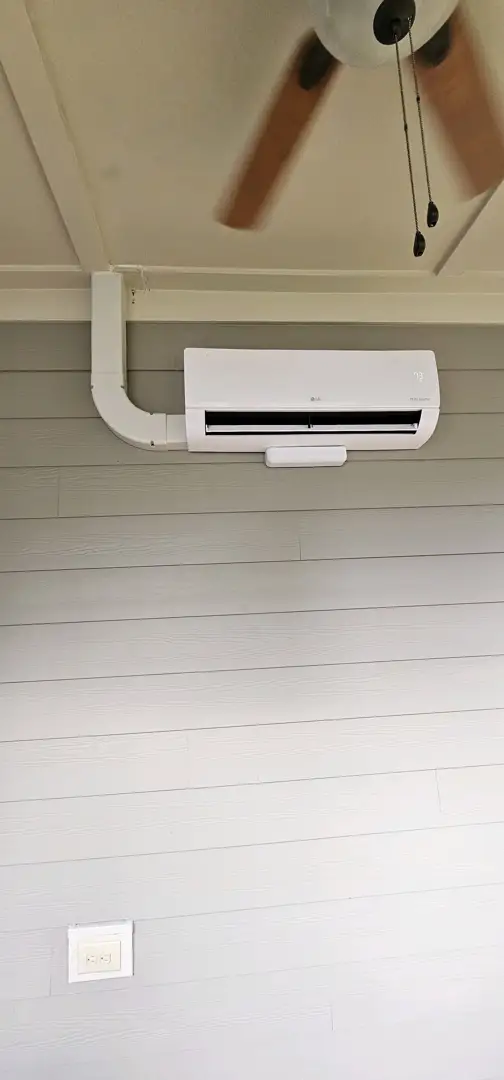

2. The Indoor Air Handler: This is the sleek unit you see on your wall or ceiling. It contains an evaporator coil and a quiet blower fan. It’s responsible for pulling in room air, conditioning it, and sending it back out.
3. The Conduit (Line Set): This is the umbilical cord of the system. It houses the power cable, communication wires, and two copper refrigerant lines (suction and liquid lines). It only requires a small three-inch hole in your exterior wall for passage.
4. The Condensate Drain: As the system cools, it removes moisture from the air. This water collects in a pan and is safely whisked away through a drain line. Proper drainage is vital to prevent leaks, especially in humid climates like ours in North Carolina. You can learn more in our Mini Split AC Drainage Guide Butner.

Understanding Ductless Mini Split Systems Explained via Heat Pump Technology

Most modern mini splits are actually "mini split heat pumps." This means they provide both cooling and heating. They utilize a reversing valve that literally swaps the direction of the refrigerant flow.

In heating mode, the outdoor unit becomes the "evaporator," extracting thermal energy from the outdoor air. Even at 0°F, there is still heat energy in the air! High-performance "hyper-heat" models can maintain 100% cooling capacity even when it's 130°F outside and continue heating effectively down to -22°F. This all-electric heating is incredibly efficient, often reducing heating costs by 50% to 70% compared to electric baseboard or propane. If your system ever struggles during these transitions, our Mini Split AC Blowing Warm Air Guide can help you troubleshoot.

Key Advantages of Going Ductless

Why are so many homeowners in the Triangle switching to ductless? The answer usually comes down to the "Three E's": Efficiency, Ease, and Economics.

Traditional ducted systems are notorious for energy waste. It is estimated that more than 30% of energy consumption for air conditioning is lost through ductwork leaks and "thermal gain" (ducts getting hot in a 130-degree attic). By delivering air directly into the room, mini splits eliminate this waste entirely. For more on the relationship between efficiency and your comfort, see our guide on Ductless HVAC for Comfort and Energy.

Personalized Comfort with Multi-Zone Control

One of the best ways to have ductless mini split systems explained is through the concept of "zoning." In a multi-zone system, one outdoor unit can power up to five (or sometimes as many as eight) indoor units.

Each indoor unit has its own thermostat. This means you can keep your master bedroom at a crisp 68 degrees for sleeping while leaving the guest room or home office at 74 degrees. You stop paying to cool or heat rooms you aren't using! This level of control is a game-changer for large families or homes with varying occupancy throughout the day. Residents in Granville County can explore this further in our article on Zone Control with Mini Split ACs in Oxford.

Ideal Applications and Installation Considerations

Ductless systems are often called the "Swiss Army Knife" of HVAC because they fit almost anywhere. We frequently install these for our neighbors in Wake Forest and Durham in the following scenarios:

• Older Homes: Many historic homes in North Carolina were built before air conditioning. Adding ducts would mean tearing out plaster walls or lowering ceilings. Ductless preserves the home's architectural integrity.
• Room Additions: If you're adding a sunroom, "man cave," or a finished room over the garage (FROG), your existing central system likely wasn't sized to handle the extra square footage. A mini split provides independent comfort without overtaxing your main unit.
• Garage Conversions: Turning a garage into a workshop or gym? A ductless system can handle the high heat load of an uninsulated garage with ease.
• Problem Areas: That one bedroom that is always five degrees warmer than the rest of the house? A single-zone mini split can provide "supplemental cooling" to fix the issue once and for all.

To see if your home is a candidate, read our post on Ductless HVAC Systems for Your Home.

Sizing Your Ductless Mini Split Systems Explained for Maximum Efficiency

Size matters—but "bigger" is definitely not "better" in the HVAC world. Sizing is measured in BTUs (British Thermal Units).

• Under-sizing: If the unit is too small, it will run constantly, failing to reach the set temperature and wearing out the compressor prematurely.
• Over-sizing: If the unit is too big, it will "short cycle." It will blast the room with cold air, reach the temperature too quickly, and shut off before it has a chance to properly dehumidify the air. This leaves you feeling cold and clammy.

We calculate the perfect size by looking at square footage, ceiling height, insulation quality, and even the number of windows in the room. A typical 400-650 sq. ft. room usually requires a 12,000 BTU unit, while a larger 1,000 sq. ft. space might need 18,000 BTUs. Avoiding these Common Mini Split AC Installation Mistakes is why professional installation is so critical.

Maintenance and Longevity for Your Ductless System

A high-quality ductless system is a long-term investment. When properly maintained, you can expect a lifespan of 15 to 20 years.

Maintenance is surprisingly simple but non-negotiable:

1. Clean the Filters: Most indoor units have filters you can simply pop out, rinse in the sink, dry, and replace. We recommend doing this every 4-6 weeks, especially if you have pets.
2. Clear the Outdoor Unit: Ensure no leaves, tall grass, or snow (on those rare North Carolina snow days!) are blocking the airflow of the outdoor condenser.
3. Professional Tune-Ups: Once a year, have a pro check the refrigerant levels, clean the coils, and ensure the condensate drain is clear. This keeps your efficiency high and prevents surprise breakdowns.

If you ever run into trouble, our team provides expert Mini Split Repair Apex NC and across the Triangle to keep your system humming.

Frequently Asked Questions about Ductless HVAC

Can mini splits provide heat in extreme cold?

Yes! While older heat pumps struggled when temperatures dropped below freezing, modern "Cold Climate" or "Hyper-Heat" mini splits are engineered for the task. Many models can provide 100% of their heating capacity down to 5°F and continue to operate at roughly 80% capacity even at -22°F. For the Triangle area, this provides total peace of mind during our winter cold snaps.

Are mini splits quieter than traditional AC?

They are remarkably quiet. Indoor units typically operate between 19 and 30 decibels. To put that in perspective, a whisper is about 30 decibels, and a normal conversation is about 60. You will often forget the unit is even running. Outdoor units are also significantly quieter than old-school central compressors, operating at levels similar to a typical background conversation.

Do ductless systems improve indoor air quality?

Absolutely. Because there are no ducts, there is no place for dust, pollen, or mold to accumulate and be blown into your rooms. Most indoor units also feature multi-stage filtration systems that can trap allergens and even some viruses. Additionally, many units have a "Dry Mode" specifically designed to remove excess humidity without over-cooling the room, which is a major benefit during our humid North Carolina summers.

Conclusion

At Temperature Control Services Inc., we have seen how ductless technology has revolutionized home comfort across The Triangle. As a family-owned provider, we take pride in helping our neighbors in places like Cary, Chapel Hill, and Youngsville find the perfect solution for their unique homes.

Whether you are looking to save on energy bills, fix a "hot spot" in your house, or finally get air conditioning into an older home, ductless mini split systems explained clearly show they are the future of HVAC. With professional installation and the right maintenance plan, you can enjoy whisper-quiet, zoned comfort for decades to come.

Ready to see how a ductless system can transform your home? Explore our Mini Split services today and let us help you achieve the perfect indoor climate for April 2026 and beyond.
